Orthopaedic Surgical Oscillating Bone Saw for Joint Surgery
Orthopaedic Surgical Oscillating Bone Saw for Joint Surgery Autoclavable swing saw(improved type): One mainframe One charger One battery ......
Send Inquiry
Product Description
Orthopaedic Surgical Oscillating Bone Saw for Joint Surgery

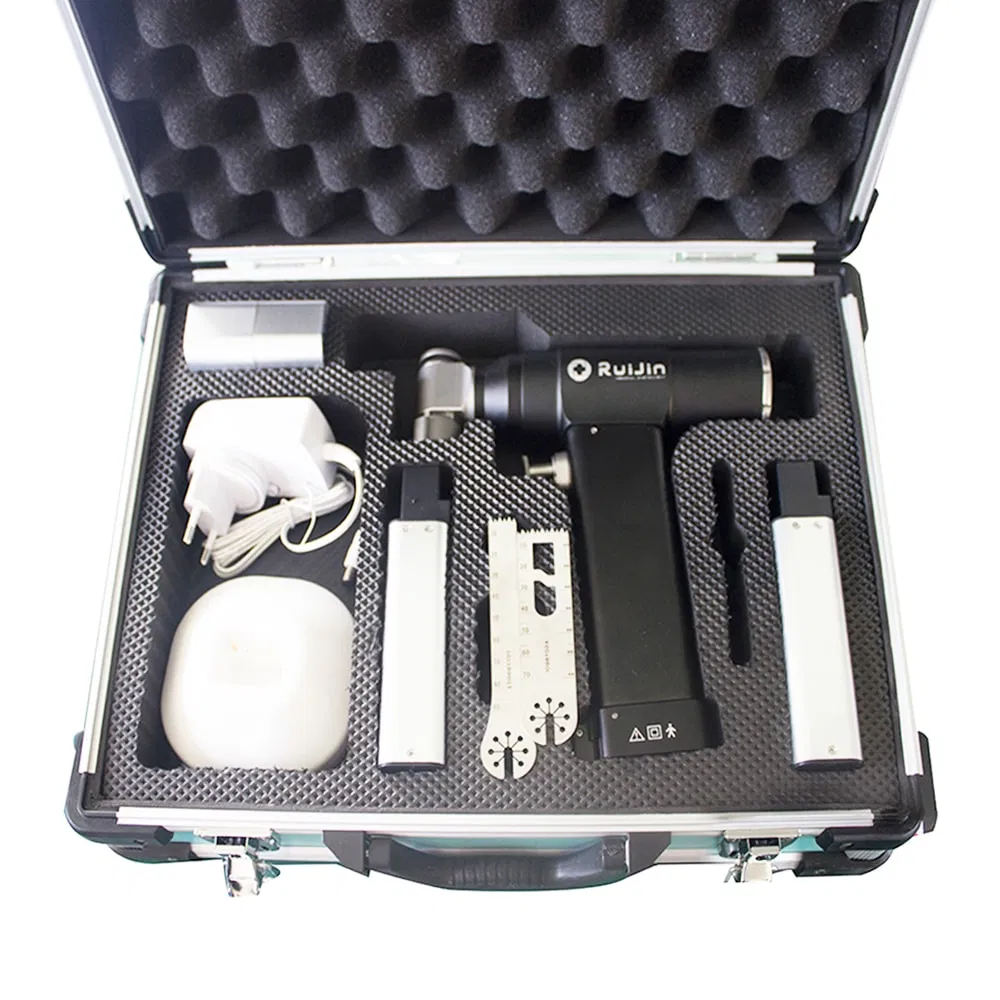

Autoclavable swing saw(improved type):
One mainframe
One charger
One battery
One sterilizing channel
Two saw blades(70mm and 90mm)
One aluminum alloy box
Product feature
1) Can be sterilized up to 135ºC
2) Motor is imported from German
3) Strong power ,low noise,small vibration
4) Reduced the risk of surgery
5) Variable speed and lightweight for better accuracy
6) Reply your inquiry in 24 working hours

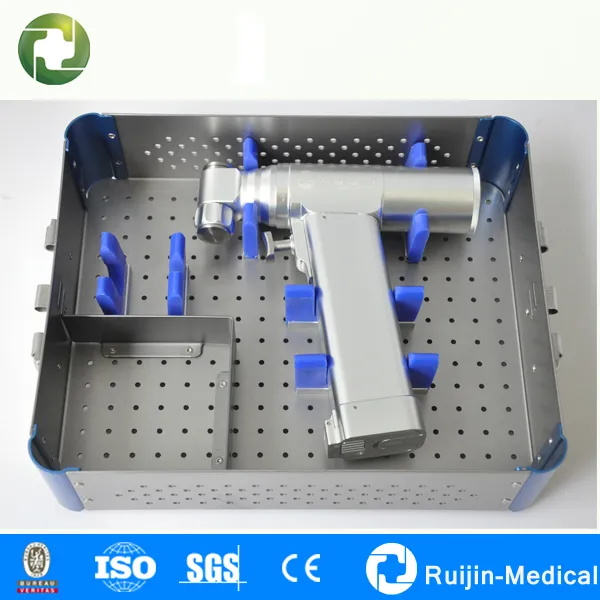

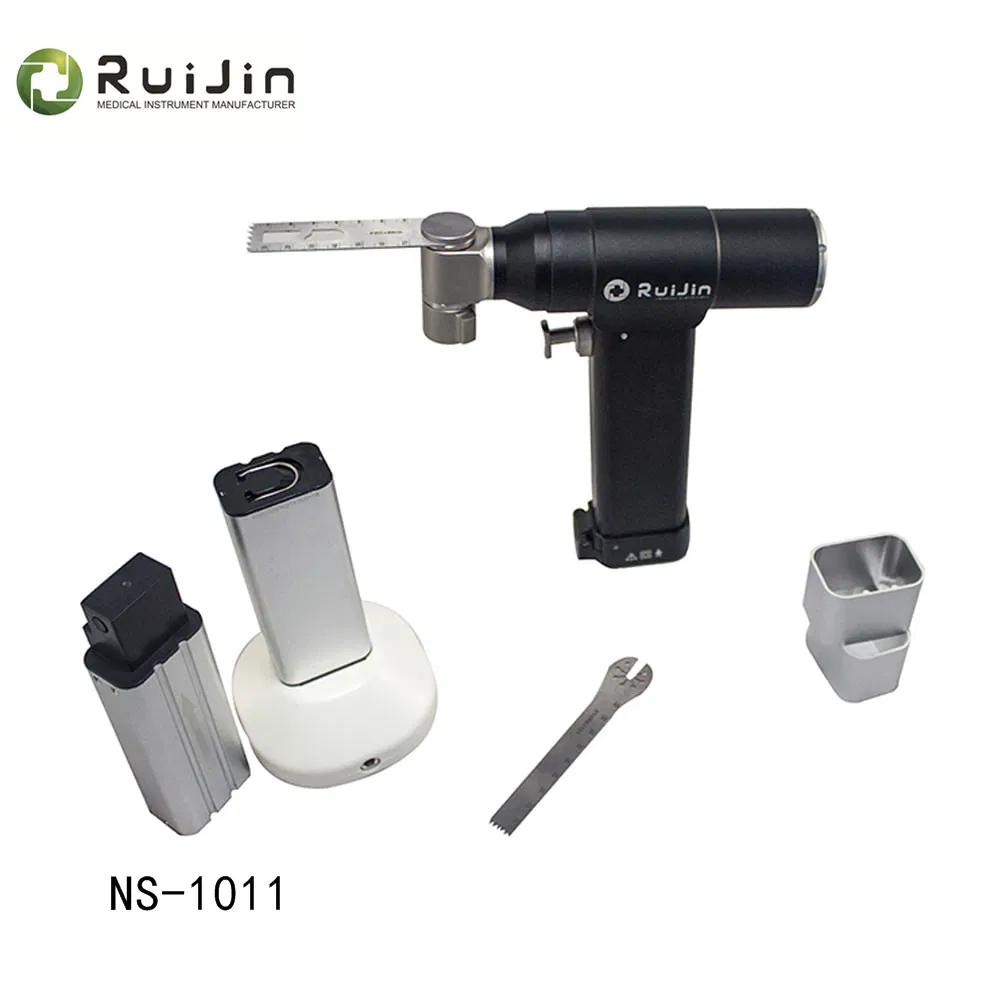

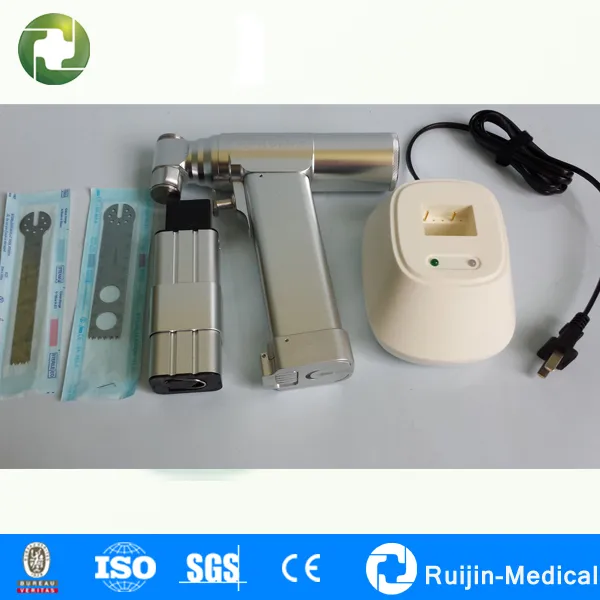

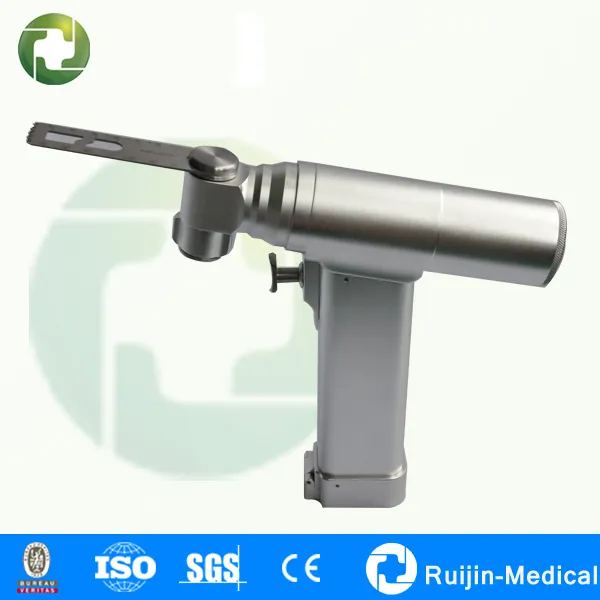

Product Display

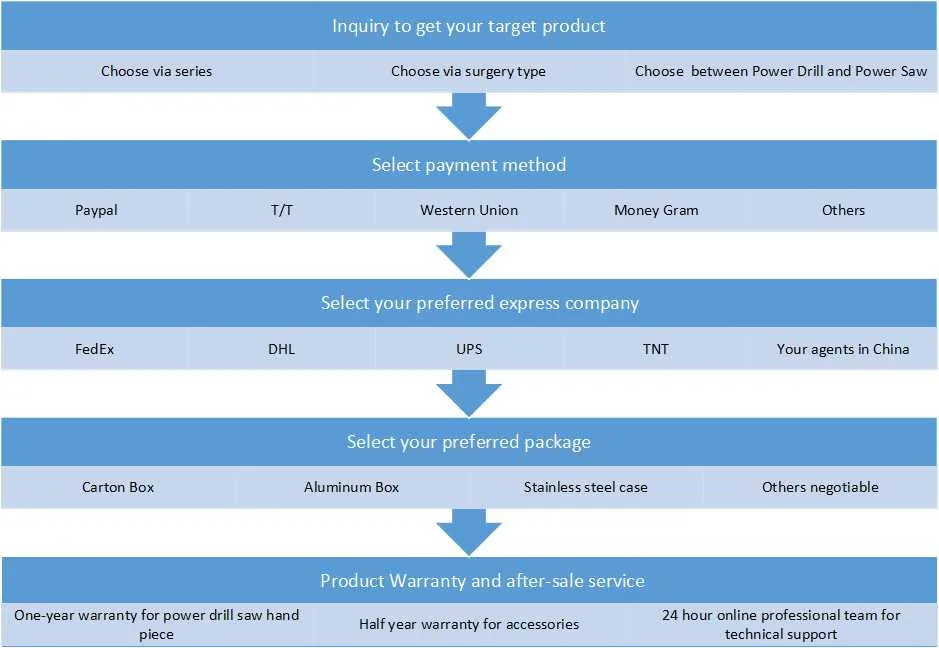

Process introduction of placing order
Technical Data
| Hand Piece Working Voltage | 14.4V |
| Hand Piece Output Power | 20W |
| Hand Piece Unit rise in temperature | 25 degree |
| Charger Input Power | AC 220V, 50Hz |
| Charger Output Power | 14.4V, 700mA |
| Charger Input Power | 30VA |
| Battery Voltage | 14.4V |
| Battery Charging time | About 3 hours |
| Non-loaded speed | 18000r/min |
| Non-loaded noise | 75dB(A) |
| Radial run-out | 0.5mm |
1.The device is forbidden to be demolished by non-professionals. If any problem, please contact with us for after sales service. |
2. The battery cannot be disinfected. |
| 3. The battery needs to be taken out of the machine's mobile phone, otherwise a small automatic discharge will shorten the battery life. |
| 4. The battery space should be dry after sterilization. |
| 5. Saw blade, the drill bit is cleaned with a purifier and kept dry after operation |
| 6. The sterilization temperature is lower than 135 degrees Celsius. If it exceeds 135 degrees Celsius, the motor will be damaged. |
7.Professional manufacture, warranty offered, CE marked. |
